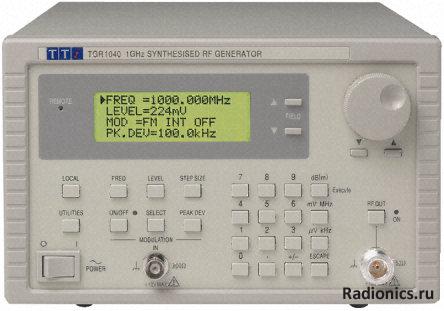

| Генератор TTI, TGR1040
TTi TGR1040 1GHz Fully Synthesised
1kHz setablity at any frequency
FM modulation, internal or external
Keyboard and rotary encoder control
Non-volatile storage for 9 user set-ups
Full remote control via integral RS-232 interface
Frequency
Setting Resolution 1kHz
Accuracy ±2ppm for 5°C to 40°C
Stability <1ppm/ year ageing
Phase Noise -110dB/Hz at 25kHz offset @ 500MHz
Residual FM
(FM off): Equivalent peak deviation in a 300Hz to 3.4kHz
bandwidth
10Hz at 100MHz carrier
17Hz at 500MHz carrier
180Hz at 1000MHz carrier
Output Level
Setting Resolution 0.1dB (or 0.01uV to 1mV)
Accuracy better than ±2dBm, except for output levels <-70dBm
at 500-1000MHz, ±3dBm
Harmonics typically <-25dBc, maximum -20dBc, output level
<0dBm
Non-Harmonic Spurii <-60dBc at >8kHz offset
Output Connector type N
Output Switch RF OUT on-off switch with status LED
FM Modulation
Peak Deviation 0.5kHz to 100kHz
Setting Resolution 0.5kHz
Modulation Freq. internal 1kHz, external 300Hz to 50kHz
Deviation Accuracy <±10% of setting ±0.5kHz, @ 1kHz mod.
External Modulation ±1dB, 30Hz to 50kHz relative to 1kHz
Distortion <2% T.H.D. at 1kHz modulation
Input Impedance 100KΩ
Input Connector BNC
General
RS232 variable Baud rate, 19200 Baud max.
Power Requirements 230V, 115V or 100V ±14% 50/60Hz
Compliance EN61010-1 & EN61326
|
