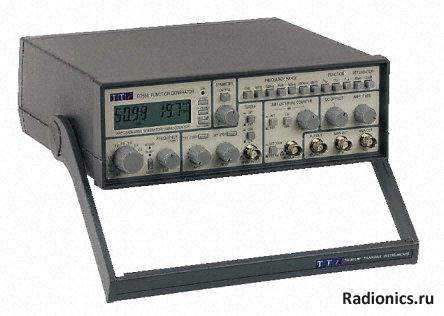

Генератор TTI, TG550
Attenuation 0 dB, -20 dB, -40 dB, -60 dB
CMOS Output Level 0 → 5V
Digital Amplitude and Offset Yes
Digital Frequency Yes
Dimensions 235 x 260 x 88mm
FM Modulation Yes
Height 88mm
Input Impedance 1 MΩ
Internal and External Amplitude Modulation Yes
Internal Linear and Log Sweep Yes
Length 235mm
Maximum Frequency Range Sinewave 5MHz
Maximum Frequency Range Square Pulse and Arbitrary Waveform 5MHz
Maximum Frequency Range Triangle/Saw 5MHz
Maximum Operating Temperature +40°C
Minimum Frequency Range Sinewave 0.005Hz
Minimum Frequency Range Square Pulse and Arbitrary Waveform 0.005 Hz
Minimum Frequency Range Triangle/Saw 0.005Hz
Minimum Operating Temperature +5°C
Model Number p TG550
Output Amplitude 20V Pk-Pk
Output Impedance 50 Ω, 600 Ω
Plug Type Type C - European Plug, Type G - British 3-pin
Time Base Accuracy ±10ppm
TTL Output Level 0 → 5V
Variable Sweep Yes
Weight 1.9kg
Width 260mm |
