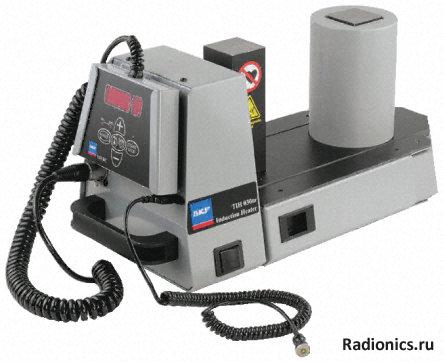

Стенд SKF TIH030M
Bearing Induction Heater
Avaialble in 230V version and 110V version
SKF induction coil Bearing Heaters designed to carefully and evenly heat bearings that are mounted with an interference fit onto a shaft. Bearing heaters allow bearings to be installed without the need for specific hand tools, and therefore eliminate the need for force to be applied to the bearing during installation. Bearing heaters may be used to heat other engineering components, such as gears, pulleys, bushes, and shrink rings, where the bearing heater-component being heated forms a closed electrical circuit. The induction coil is housed outside the heater housing, thereby providing a shorter heating time and reduced energy consumption during use. Foldable bearing support arms facilitate the heating of larger bearings/other suitable components, and a magnetic temperature probe helps prevent overheating. The heaters feature an integrated, easy-to-use control panel and handset/remote control. An integrated carrying handle is built into the bearing heater design, and each heater comes complete with three yokes: 45 x 45 x 215mm; 28 x 28 x 215mm, and 14 x 14 x 215mm.
Technical Specification
Voltage 230V, 50-60Hz
Workpiece
Max. Weight 40kg (88lb)
Bore Range 20-300mm (0.8-11.8in.)
Dimensions 450 x 195 x 210mm
Total Weight (inc. yokes) 20.9kg (46lb)
Max. Power Consumption 2.0kVA
Standard Yokes Supplied 45 x 45 x 215mm
28 x 28 x 215mm
14 x 14 x 215mm
|
