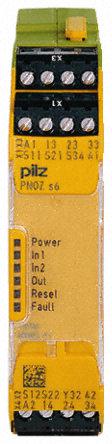

Реле PILZ, PNOZ S6 24VDC
Auxiliary Contacts NC
Contact Current Rating 6 A
Contact Voltage Rating 24 V dc, 240 V ac
Control Voltage 24 V
Depth 120mm
Dimensions 98 x 22.5 x 120 mm
Length 98mm
Maximum Operating Temperature +55°C
Minimum Operating Temperature -10°C
Mounting Style DIN Rail Mount
Normal State Configuration 3NO (Safety), NC (Auxiliary)
Number Of Auxiliary Contacts 1
Number of Channels 2
Pole Configuration 3P (Safety), SP (Auxiliary)
Power Rating 3.5 W, 7 VA
Safety Category Category 3 PLe EN ISO 13849-1, Category 4 EN 954-1, CCC, cULus, EN 60947-5-1, EN 61000-6-2, EN IEC 62061 PFH 2.62E-09, EN IEC 62061 SIL CL 3, EN ISO 13849-1:2006 20, IEC 61511 PFD 3.32E-05, IEC 61511 SIL 3, TUV, Type 3 A EN 574
Safety Contacts 3NO
Supply Voltage 24 V dc
Terminal Type Screw
Width 22.5mm |
