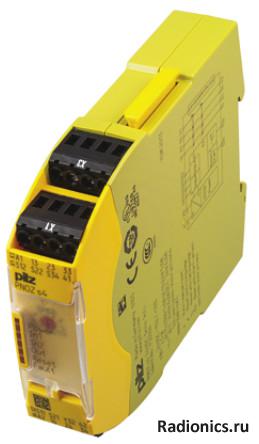

Реле PILZ, PNOZ S4 24VDC
Auxiliary Contacts NC
Contact Current Rating 6 A
Contact Voltage Rating 24 V dc, 240 V ac
Control Voltage 24 V dc
Depth 120mm
Dimensions 102 x 22.5 x 120 mm
Length 102mm
Maximum Operating Temperature +55°C
Minimum Operating Temperature -10°C
Mounting Style DIN Rail Mount
Normal State Configuration 3NO/NC
Number Of Auxiliary Contacts 1
Number of Channels 2
Pole Configuration 3P (Safety), SP (Auxiliary)
Power Rating 2.5 W
Reset Method Automatic, Manual, Monitored
Safety Category Category 4 EN 954-1, Category 4 PLe EN ISO 13849-1, EN 60947-5-1, EN 61000-6-2, EN 61000-6-4 (EMC), EN IEC 62061 PFH 2.31E-07, EN IEC 62061 SIL CL 3, IEC 61511 SIL 3, IEC61511 PFD 2.03E-05
Safety Contacts 3NO
Supply Voltage 24 V dc
Terminal Type Screw
Width 22.5mm |
