Тестер MEGGER, BM12

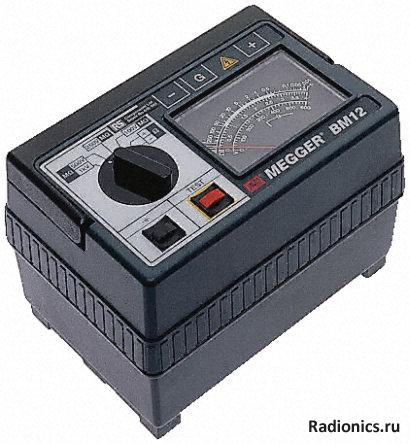

BM12 Multi-Voltage Insulation & Continuity Tester
A battery powered multi-voltage insulation and continuity tester incorporating a voltage measuring range. The BM12 is an analogue instrument designed to meet the requirements of the IEE regulations for testing electrical installations, and additionally meets specification VDE 0413. Suitable for use on motors, generators, transformers, and switchgear, the BM12 handles insulation test voltages of 100, 250, 500 and 1000 volts d.c.
Tests to BS7671 413-04-04, 713-02, 713-03, 713-04, 713-06.
Dimensions (H x W x D) 128 x 180 x 125 mm
Weight 1kg
Ranges
Insulation resistance 0 to 2000MΩ (1mA)
Continuity 0 to 4Ω (200mA)
Voltage 0 to 600V a.c.
Insulation test voltages 100, 250, 500, 1 kV d.c.
Terminal Current (ons/c) (insulation resistance) 1.9mA
Accuracy
Insulation resistance and continuity ranges Typically ± 1.5 of f.s.d.
conforms to VDE 0413 (parts 1 and 4)
Voltage range ± 2.5 of f.s.d.
Batteries 6 x 1.5V cells IEC LR6 (AA)
|
