Преобразователь напряжения MASCOT, 9984

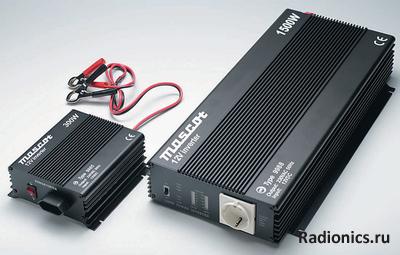

Преобразователь напряжения MASCOT, 9984 DC to AC converter for converting 12 or 24 V direct voltage to 230 V alternating voltage. Suitable for battery operation of equipment that is normally connected to the power mains, such as TV sets, VCRs, lighting and smaller electrical tools in such places as cars, boats or solar-powered systems. Can also be used for battery charging in portable computers, telephones or video cameras or as auxiliary power supply in case of power failure. The converter is protected against short-circuiting, overload and excess input voltage. Low battery voltage triggers an alarm and the converter switches off automatically. DC to AC converter 12 V/120 W is available in two versions, with cable assemblies equipped with battery clips or cigarette lighter connectors. Input voltage: 12 Vdc (10–15 V) or 24 Vdc (20–30 V) Output voltage: 230 Vac +5, -10 % Frequency: 50 Hz Curve shape: Modified square wave Output power: See price table Idle running current 120/300 W, 12/24 V: <0.25/0.15 A 600 W, 12/24 V: <0.65/0.4 A 1000 W, 12/24 V: <0.9/0.5 A 1500 W, 12/24 V: <1.2/0.7 A Efficiency: 85–90 % Undervoltage protection alarm: 10.7 V (12 V vers.), 21 V (24 V vers.) switch-off: 10 V (12 V vers.), 20 V (24 V vers.) Output connector 120/300 W: 230 V class II (unearthed, euro connector) 600-1500 W: 230 V earthed, conforming to the IEC83 standard Input connector 120 W: Battery clip 12 V/120 W: Battery clip or cig. lighter connector 300 W: Pole screw and battery clip 600-1500 W: Screw terminal Dimensions 120 W: 125×35×96 mm 300 W: 150×60×200 mm 600 W: 240×80×280 mm 1000 W: 237×86×360 mm 1500 W: 237×86×437 mm Weight 120 W: 0.5 kg 300 W: 1.0 kg 600 W: 2.5 kg 1000 W: 4.5 kg 1500 W: 5.1 kg

Информация

Код товара 19675

Производитель Mascot (Norway)

Артикул производителя 9984

Условия поставки Под заказ

Цена : Цену уточняйте: radioniсs@mail.ru
