Преобразователь напряжения MASCOT, 2284

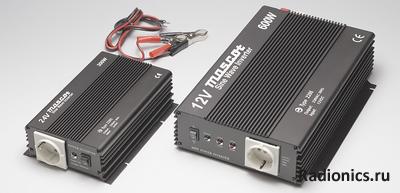

Преобразователь напряжения MASCOT, 2284 Converter for converting 12 or 24 Vdc from e.g. a car battery to 230 sine-shaped alternating voltage. For operation of mains-connected equipment in cars, trucks, fork lifts, boats or caravans and from solar electric systems. The sine-shaped output voltage makes the converter suitable for equipment that is sensitive to modified square-shaped waves emitted by ordinary converters. Suitable for operation of TVs, audio/video equipment, computers, mobile phone chargers, test instruments for power tools, lighting, etc. The converter is short-circuit proof, protected against overload, overvoltage on the input, and overheating. All models are also equipped with a fan. Alarm and automatic power off at low battery voltage. Input voltage: 12 Vdc (10–15 V) or 24 Vdc (20–30 V) Output voltage: 230 Vac +5, -10 % Frequency: 50 Hz Curve shape: Sine Output power: See price table Idle current 150 W, 12/24 V: <0.3/0.5 A 300 W, 12/24 V: <0.7/0.4 A 600 W, 12/24 V: <1.4/1.0 A 1000 W, 12/24 V: <1.8/1.0 A Efficiency: Approx 90 % Undervoltage protec. alarm: 10.7 V (12 V version), 21.4 V (24 V version) power off: 10 V (12 V version), 20 V (24 V version) Output connector: 230 V class I (earthed, acc. to IEC83 standard) Input connector 150 W: Cable assembly with battery clamps (fixed connection) 300 W: Cable assembly with battery clamps (by screw block) 600/1000 W: Screw block Dimensions / weight 150 W: 150×65×190 mm / 1.2 kg 300 W: 150×65×238 mm / 1.8 kg 600 W: 238×83×335 mm / 3 kg 1000 W: 238×83×395 mm / 4 kg

Информация

Код товара 19676

Производитель Mascot (Norway)

Артикул производителя 2284

Условия поставки Под заказ

Цена : Цену уточняйте: radioniсs@mail.ru
