Тестер ROBIN, KMP7100

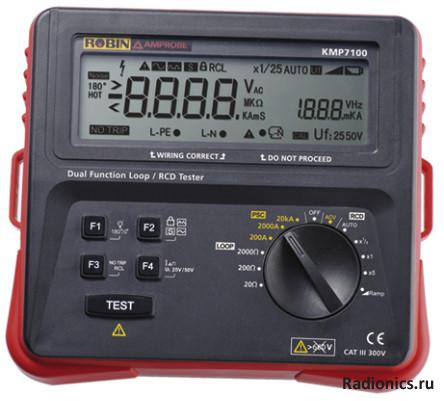

KMP7100 Dual Function Loop / RCD Tester
The KMP7100 tester is a dual function installation tester designed to check if ground resistance and RCD provide sufficient protection. Made for porting around from testing point to testing point, the KMP7100 Dual Function Loop / RCD Tester is comfortable to hold, easy to use and features a large-size LCD screen that shows all testing results.
Loop Functions:
Non trip loop test on passive RCDs
Fast testing
20, 200 and 2000Ω loop measurement ranges
PSC measurement up to 20kA
Displays mains voltage before test
Instant correct wiring status check
RCD Functions:
Three levels of trip currents (X1/2, X1, X5) for complete range of testing applications
Phase switch selection 0° and 180° for positive and negative semi-cycle testing
RCD Half-Wave (DC) test
Auto RCD test
Selectable 25V/50V fault voltage for RCD test
Displays mains voltage before test
“Test lock” for automatic start test when connected to circuit
Dual measurement result display - primary display for
RCD/Loop measurement, secondary display for circuit voltage
Built-in Volt meter
Large, backlit display
Low battery indication
Safety CAT III 300V, CAT II 600V
Supplied with
3-wires mains test cord with UK plug, test leads x 3, test probes x 3, alligator clips x 3, batteries ( 8 x AA), users manual, strap and carrying case.
