| Анализатор мощности ISO-TECH, IPM3005

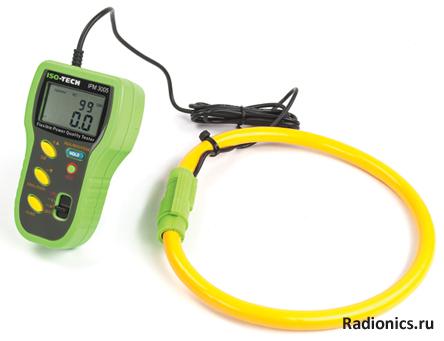

ISO-TECH IPM3005 3000A ac,Flexible Probe Power Quality Tester
Balanced 3 phase and single phase 3000A power quality tester with flexible 3000A probe and data logging functions for the measurement and diagnosis of power problems in electrical installations and power circuits. An optically isolated USB lead and analysis software enables readings to be displayed and/or downloaded for analysis on a PC or Laptop.
True RMS measurement of Vac and Iac
Active power measurement (W, kW, HP)
Reactive power measurement (VAR, kVAR)
Apparent power measurement (VA, kVA)
Power factor (PF) and phase angle (Ø) measurements
Energy calculation (WH and kWH)
Measures balanced 3Ø power and sequence
Non-interrupted harmonic analysis (V and A) to the 50th order in % and magnitude
Dual display with fast Peak Hold, Max and Min functions
Selectable CT ratios from 1 to 1000
Data logging to internal memory for up to 8000 readings with programmable logging interval
Selectable Auto power-off up to 30 minutes
ac Current Range 50-60Hz True RMS, Crest Factor <4 0-3000A
Resolution ac current 0.1A (0-999.9A), 1A (1000-3000A)
Accuracy ac current ±1% of range (typical)
ac Voltage Range 50-60Hz True RMS, Crest Factor <4 4-600V
Resolution ac voltage 0.1V
Accuracy ac voltage ±0.5% reading ±5 digits
Power measurement 10W - 9999kW/kVA/kVAR
Resolution power 0.1 (10W - 1kW/VA/VAR)
1 (1kW - 10kW/VA/VAR)
10 (10kW - 100kW/VA/VAR)
100 (100kW - 1000kW/VA/VAR
1000 (1000kW - 9999kW/VA/VAR)
Accuracy active/apparent power (0-1500A) ±1% ±20 digits (>20V,>20A)
±2% ±40 digits (<20V,<20A)
Accuracy reactive power (0-1500A) ±1% ±20 digits (>20V,>20A)
±3% ±40 digits (<20V,<20A)
Accuracy Power Factor (PF) (0.0-1.0) ±0.04 (>20V,>20A)
Harmonics Vac (50/60Hz >80V) ±2%, 1st - 20th
4% of reading ±2%, 21st - 50th
Harmonics Iac (50/60Hz >20A) ±2%, 1st - 20th
4% of reading ±2%, 21st - 50th
Phase angle (Ø, V>20V, I >30A) -180° to +180°: ±2°
0° to 360°: ±2°
THD-F (50/60Hz, >80V, >20A, 1st to 50th Harmonics) 0 to 20%: ±2%
20 to 100% :±6% of reading ±1%
Peak value of Voltage (RMS value >10V) ± 5%, ±30 digits
Peak value of Current (RMS value > 20A) ± 5%, ±30 digits
Battery 2 off AA alkaline
Maximum conductor size 55mm dia, 64x24mm bus bar
|
