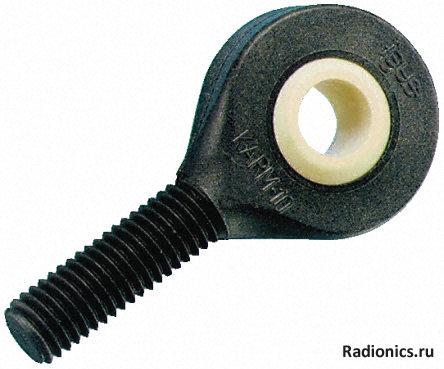

Наконечник IGUS KARM-12
Category Rod Ends and Spherical Bearings
Bearing Bore Size 12mm
Bearing Centre To Rod-End Length 54mm
Length 71mm
Bearing Housing OD 34mm
Corrosion And Chemical Resistant Yes
Maximum Load - Static 2600N
Overview
Male Thread
Enlarge
Range Overview
Rod End & Spherical - Maintenance Free IGUS®
IGUBAL® spherical bearings are self-lubricating, designed to run dry and are maintenance free
The bearings are extremely tolerant to dirt and dust - IGUBAL® can be used in abrasive environments
8 to 20mm bore size
Low weight (20% of equivalent steel)
High rigidity
Corrosion and chemically resistant
High fatigue strength under changing loads
Working temperature range -40°C to +80°C
Note
IGUBAL® bearings are designed to run with a clearance between the shaft and the inside diameter of the ball, to prevent the ball turning in the housing.
|
