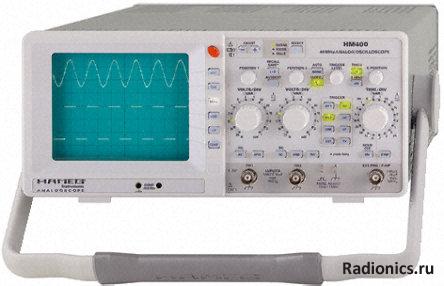

Осциллограф HAMEG, HM400
Bandwidth 40MHz
Dimensions 285 x 380 x 125mm
Height 125mm
Input Capacitance 15 pF
Input Impedance 1 MΩ
Length 285mm
Maximum Operating Temperature +40°C
Maximum Time Base 0.2s/div
Maximum Vertical Sensitivity 20V/div
Minimum Operating Temperature +5°C
Minimum Time Base 100ns/div
Minimum Vertical Sensitivity 1mV/div
Model Number p HM400
Number of Channels 2
Power Source Mains
Rise Time 35 ns, 8.75 ns
Safety Category CAT II 253 V
Safety Category Level CAT II
Safety Category Voltage 253V
Weight 4.8kg
Width 380mm |
