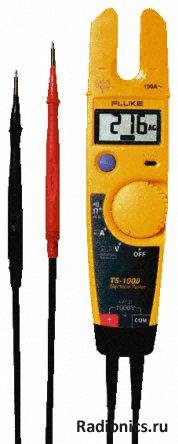

Тестер FLUKE, T5-1000
Fluke T5-600 & T5-1000 Multi-function
Easy and accurate OpenJaw™ current measurement in a single conductor or single core cable
Automatically measures AC & DC volts
Displays resistance up to 1000Ω
Continuity beeper
Compact design with probe storage
Detachable probe tips
Protected to 600V (T5-600) and 1000V (T5-1000) for use in CAT III environments
Power from 2 x AA cell
Auto switch-off
See RS 731-8973 for a T5 Accessory Kit for use with the T5 which consists of a TP220 SureGrip™ Test Probe Set, AC285 SureGrip™ Alligator Clip Set and a C33 Soft Meter Case
See also RS 754-1246 which is a replacement test lead set for the T5-600 and T5-1000
Current, Voltage and Continuity/ResistanceTesters
T5-600 T5-1000
AC voltage 600V rms 1000V rms
AC voltage accuracy ± (1.5% +2 digits) ± (1.5% +2 digits)
DC voltage 600V 1000V
DC voltage accuracy ± (1% + 1 digit) ± (1% + 1 digit)
AC current 100A 100A
AC current accuracy ± (3% + 3 digits) ± (3% + 3 digits)
Ohms 1000 ohms 1000 ohms
Ohms accuracy ± (1% + 2 digits) ± (1% + 2 digits)
Input impedance V ac/dc 1Mohm >100pf 1Mohm >100pf
Ohms <2.6kOhm <2.6kOhm
Safety IEC1010 CAT III 600V IEC1010 CAT III 1000V
Battery life 400 hrs typical 400 hrs typical
Size (HxWxD) & Weight 31 x 51 x 203mm, 300g 31 x 51 x 203mm, 300g
|
