Тестер FLUKE-9062

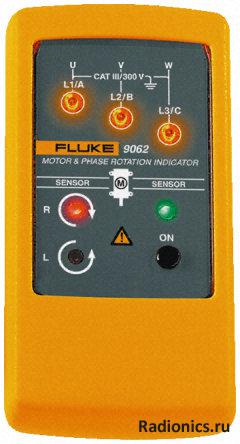

Fluke 9062
Motor rotation and rotary field indicator with contact-free detection
Rotary field Indicator – indication of the three phases via LED
Motor rotation Indicator - display of motor rotation direction
Contact free determination of the rotation direction of running motors
Swift determination of the rotary field as for conventional rotary field indicators
Magnetic field detection to detect AC solenoid valve
Contact-free determination of rotation direction of running motors.
Ideal if motor shafts are not visible or difficult to access. (i.e. circulating pumps)
Voltage free and safe detection of three phase motor connectors .
Indicates the motor rotation before starting the motor
Fused test probes are 500mA 1000V fast acting
Weight 200 g
Voltage Range 1400 Vac
Phase Display 120 - 440 Vac
Frequency range 2400 Hz
Test Currents < 3.5 mA
Measurement category CAT III / 300 V
Protection Degree IP 40
Safety Complying with IEC61010 / EN61010, IEC61557-7 / EN61557-7
|
