Калибратор многофункциональный FLUKE-725US

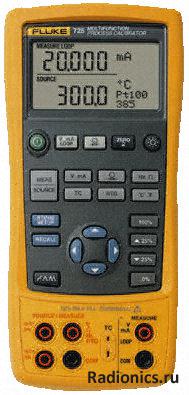

Multifunction Process Calibrator 725
Small, streamlined shape, easy to carry
Easy to read measure/source screen lets you view input and output simultaneously
Measure mA, volts, RTDs, thermocouples, frequency and ohms to test sensors and transmitters
Source/simulate volts, mA, RTDs, thermocouples, frequency and ohms to calibrate transmitters
Measure/source pressure via external pressure modules
Support flow meter testing with frequency and CPM functions
Perform a fast linearity test with auto-step and auto-ramp features
Power transmitters during test using loop supply with simultaneous mA measurement
Stores frequently used test set ups for later use
Function Measure Sourcing
dc voltage 0-30V 100mV, 10V
dc current 0-20mA 0-20mA
Frequency 1 count/min to 10kHz, 1-10Hz 2-10,00 count/min, 1-110Hz
Thermocouples J, K, T, E, R, S, B, L, U, N
RTDs Ni120 (672), Pt100(385), Pt100 (3926), Pt100 (3916), Pt200 (385), Pt500 (385), Pt1000 (385)
Pressure Supported via external pressure modules
Operating Temperature -40 to +55°C
Power supply 4 x AA alkaline batteries (supplied). Life 25hrs (approx)
Supplied with
batteries, test leads/clips and a protective yellow holster. |
