Мультифункциональный калибратор FLUKE 725EX

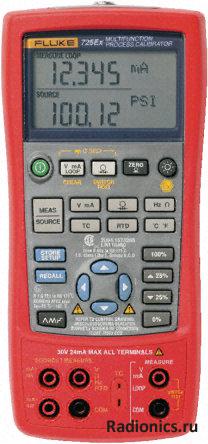

Fluke 725EX Multi-Function Process Calibrator ATEX
Small, streamlined shape makes it easy to carry
Easy to read measure/source screen lets you view input and output simultaneously
Measure mA, volts, RTDs, thermocouples, frequency and ohms to test sensors and transmitters
Source/simulate volts, mA, RTDs, thermocouples, frequency and ohms to calibrate transmitters
Measure/source pressure via external pressure modules
Support flow meter testing with frequency and CPM functions
Perform a fast linearity test with auto-step and auto-ramp features
Power transmitters during test using loop supply with simultaneous mA measurement
Stores frequently used test set ups for later use
protective over moulded red holster for maximum duarability
Pressure measurement using external P700Ex modules (see Fluke 718Ex Pressure Calibrator typically stock No. 479-2444)
Function Measure Sourcing
dc voltage 0 to 30V 100mV & 10V
dc current 0 to 24mA 0-24mV
Resistance 15 to 3200Ω
Frequency 2 to 1000 count/min
1 to 1000Hz
1 to 10kHz
Thermocouples J, K, T, E, R, S, B, L, U, N
RTD Nil20 (672), Pt100 (385), Pt100 (3926),
Pt100 (3916), Pt200 (385), Pt500 (385),
Pt1000 (385)
Pressure Supported via 700PEx external pressure modules
Operating temperature 10 to 55°C
Power supply 4xAA Alkaline, life 25h approx.
Supplied with
Pair of TL75 test leads, AC72 test clips & stackable test-leads. 4xAA alkaline batteries, user manual on CD-ROM. |
