| Термометр FLUKE-53-2 B

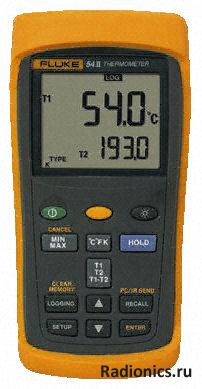

Fluke 50 Series II Thermometer
Fluke 51 and 52 Series II features:
Model 51-II single input: Model 52-II dual input
Large backlit dual display shows any combination of T1, T2 (52 and 54 only), T1-T2 (52 and 54 only), plus MIN, MAX or AVG
Relative time clock on MIN, MAX and AVG provides a time reference for major events
Electronic offset function allows compensation of thermocouple errors to maximise overall accuracy
Measures J, K, T and E type thermocouples
Readout in °C, °F or Kelvin (K)
User friendly front panel is easy to set up and operate
Sleep mode increases battery life
Fluke 53-2-B and 54-2B additional features:
Model 53-2-B single input: Model 54-2-B dual input
Data logging up to 500 points of data with user adjustable recording interval
Additional thermocouple types N, R, and S
Real time clock captures the exact time of day when events occur
Recall function allows logged data to be easily reviewed on the meter display
You can transfer the contents of the thermometer’s memory to a PC using FlukeView Forms
Fluke 53-2B & 54-2B Compatible with the Fluke FVF- SC2 FlukeView software and USB lead
IR communication port allows data to be exported to optional FlukeView™ Temperature PC software for further analysis and graphing
Measurement Range
J Type -210 °C → +1200 °C (-346°F → + 2192°F)
K Type -200 °C → +1372 °C (-328°F → + 2501°F)
T Type -250 °C → +400 °C (-418°F → + 752°F)
E Type -150 °C → +1000 °C (-238°F → + 1832°F)
N Type -200 °C → +1300 °C (-328°F → + 2372°F)
R and S Type 0 °C → +1767 °C (-32°F → + 3212°F)
Measurement Accuracy
Above -100°C (-148°F)
J, K, T, E and N type ±(0.05% + 0.3°C (0.5°F))
R and S type ± (0.05% + 0.4°C (0.7°F))
Below -100°C (-148°F)
J, K, E and N type ±(0.20% + 0.3°C (0.5°F))
T type ±(0.50% + 0.3°C (0.5°F))
Display Resolution 0.1°C/°F/K <1000°
1°C/°F/K >1000°
Operating Temperature -10°C to + 50°C (14°F to + 122°F)
Humidity 0% to 90%, 0°C to + 35°C (32°F to + 95°F)
0% to 70%, 0°C to + 50°C (32°F to + 122°F)
Batteries 3 AA batteries, life 1000hr (typ)
Note
Fluke 53-2B & 54-2B need the Fluke FVF- SC2 FlukeView software and USB lead
Supplied with
Instruction leaflet, holster, battery (fitted)
1 off type K thermocouple (Model 51-II & model 53-2-B)
2 off type K thermocouple (Model 52-II & Model 54-2-B) |
