Модуль Elektro-Automatik, EA-IF-R1 RS232

Модуль Elektro-Automatik, EA-IF-R1 RS232

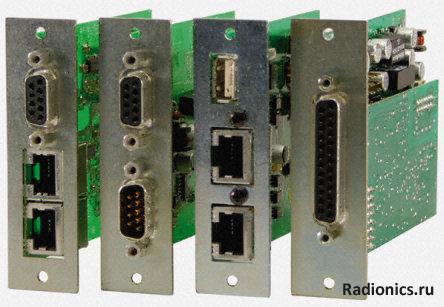

Interface Cards for PSI and EL Series
Can be retrofitted, simple to install using plug and play
Simple configuration via setup menu on the device
Gateway function with 2 cards (PSI 9000)
Simple networking of different devices
Master-slave mode support
Share-bus mode support
Galvanic isolation up to 2000 V
USB and VCP drivers
LabView VIs
System link mode
Transmission speed: max. 57600 Bd
EA-IF-U1 USB INTERFACE
Adjustable voltage range (e.g. B. 0 to 5 V, 2 to 7 V)
Digital and analogue input and outputs
Parameterisable outputs / inputs
Galvanically isolated
Analogue (IF-A1)
Command execution time: < 5 ms
SCPI command set
Up to 15 devices on bus
Networking of several different devices
IEEE/GPIB (IF-G1)
RS232 for part numbers (IF-R1 / IF-R2)
Variable baud rates up to 57600 Bd
System link mode
LabView VIs
Profibus interface for EA-PS / PSI 8000
Complies with the IEC 61158-2 standard
Data transfer rate of up to 12 Mbit/s
Up to 32 devices on a single bus segment
Integrated IF-U1 functionality via addressable USB port
Profibus (IF-PB1 / IF-PB2)
Variable baud rates up to 1 Mbit/s)
CAN2.0A-compatible
Gateway to USB or RS232 (only with PSI 9000)
Relocatable address segments
Integrated bus connection
EA-IF-C1 CAN
EA-IF-E1 Ethernet interface
IF-E1 interface, EA-PS / PSI 8000
SCPI control command set
HTTP server with user control interface
Integrated IF-U1 functionality via addressable USB port
Supplied with
Software CD with instructions and tools

Информация

Код товара SKU21378

Производитель Elektro-Automatik

Артикул производителя EA-IF-R1 RS232

Условия поставки Под заказ

Цена : Цену уточняйте: radioniсs@mail.ru

Оформить заказ можно здесь:

Заказать

Добавить в корзину
