Набор инструмента BERNSTEIN 6900

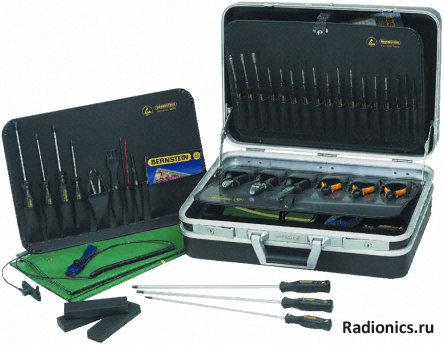

ESD service case, EPA 6900 / EPA 6915
Robust plastic shells with double aluminium frame
Two removable tool panels with pockets
Document compartment in the case lid
External dimensions L x W x H (mm): 460 x 165 x 310
Weight loaded/empty: 6.3 kg / 5.4 kg
Lockable service case, made entirely of conductive material, essential for working in electrostatically hazardous areas. Equipped with an extensive range of ESD tools
with nickel-plated chrome vanadium blades and black tips.
Includes
Bernstein no. Type Description
Screwdriver
4-633 Slot 5.5 ESD, blade CV 125 mm
4-632 Slot 4 ESD, blade CV 100 mm
4-606 Slot 2.5 ESD, blade CV 60 mm
4-605 Slot 2 ESD, blade CV 60 mm
4-603 Slot 1.5 ESD, blade CV 50 mm
4-663 Phillips PZ2, ESD, blade CV 100 mm
4-662 Phillips PZ1, ESD, blade CV 80 mm
4-621 Phillips Sz.000, ESD CV, 50 mm
4-622 Phillips Sz.00, ESD CV, 50 mm
4-623 Phillips Sz.0, ESD CV, 50 mm
6-659 TORX® T4 ESD, blade CV 50 mm
6-661 TORX® T5 ESD, blade CV 50 mm
6-662 TORX® T6, ESD, blade CV 50 mm
6-663 TORX® T7 ESD, blade CV 50 mm
6-665L Torx® - BO T9 ESD, blade CV 60 mm
6-612 Socket wrench SW2 ESD, blade CV 70 mm
6-617 Socket wrench SW4 ESD, blade CV 70 mm
6-621 Socket wrench SW5.5 ESD, blade CV 70 mm
Tweezers
5-191 Rounded tips Fibreglass-reinforced, 120 mm
5-192 Flat 3 mm tips Fibreglass-reinforced, 120 mm
5-194 Curved tip Fibreglass-reinforced, 120 mm
2-620 Extraction tool For PLCC components
2-101 Tin knife Ceramic blade, 115 mm
2-265 2 x testing tips Red and black, tips 1 mm steel
Pliers
3-133-13 Diagonal cutter 145 mm, hard wire → Ø 1.25 mm
3-732-13 Combination pliers 165 mm, ESD, chrome-plated
3-245-13 Telephone pliers 200 mm, ESD, with wire cutters
3-654-15 Diagonal cutter 125 mm, for copper wire → Ø 1.5 mm
3-671-15 End cutters 130 mm, for copper wire → Ø 0.6 mm
3-682-15 Flat plier 130 mm, very slim
7-422 ESD brush Bristle width 20 mm |
