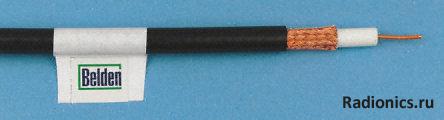

Кабель BELDEN 8213, RG11
Attenuation 2.9dB/100ft@400MHz, 4.1dB/100ft@700MHz, 4.8dB/100ft@900MHz, 5.2dB/100ft@1GHz
Cable Shape Coaxial
Capacitance 52.808 pF/m
Characteristic Impedance 75 Ω
Coaxial Type RG11/U
Conductor Material Bare Copper
Conductor Strand Type Solid
Core Strands 1/14
Insulation Material Foam HDPE
Maximum Operating Temperature +80°C
Minimum Operating Temperature -55°C
Number of Strands 1
Outer Diameter 10.287mm
Reel Length 152m
Sheath Colour Black
Sheath Material PE
Size of Strands 14 AWG
Velocity ratio 84%
|
