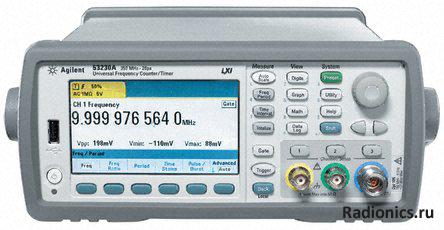

Частотомер Agilent, 53230A
Agilent 350 MHz Counters
A new generation of 350 MHz RF and Universal counter/timers with new performance and usability standards. The first frequency counters with LXI-C compliance, the combination of high speed measurements and built-in analysis provide new functionality that has not previously been available in basic frequency counters/timers.
Optional 6 GHz or 15 GHz Input
Single-shot resolution 20ps models
1M reading memory & datalogging
LXI-C, LAN, USB, GPIB (opt) Large color graphical display: Math, statistics, histogram, trend/stripchart, datalogging
1MSa continuous/gap-free measurement and timestamp capability (53230A)
Optional pulse microwave measurements (53230A) and battery
Bench Dimensions 261.1 mm x 103.8 mm x 303.2 mm
Rack Mount Dimensions 212.8 mm x 88.3 mm x 272.3 mm (2U x 1 / 2 width)
Weight 3.9 kg (fully optioned)
Operating Temperature 0 °C → 55 °C
Voltage 100 V → 240 V universal input; 50 / 60 Hz -5 % → +10 %
100 V → 120 V; 400 Hz ±10 %
Display 4.3" Colour TFT WQVGA (480 x 272), LED backlight
User interface and help languages English, German, French, Japanese, Simplified Chinese, Korean
Model 53210A 53220A 53230A
Averaged Measurements: Frequency, Period for F >5MHz
12 digit measurement 100 s / reading 100 sec / reading 1 / s
10 digit measurement 10 / s 100 / s 500 / s
6 digit measurement 300 / s 1000 / s 50,000 / s
Single Shot Measurements: Time Interval
A-B, Single Period, Pulse Width, Rise, Fall N / A 1000 / s 100,000 / s
Approvals
Cat 1 (300 V), EN61010, NRTL certified, EN55011, 61326-1 |
