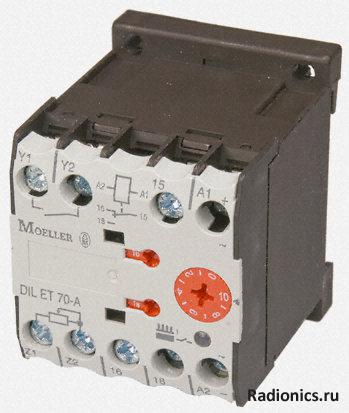

Таймер MOELLER, DILET70
ode of Operation Flash, Fleeting, OFF Delay, ON Delay, Pulse Former, Pulse Generator
Number of Timer Functions Multi Function
Time Increment Hours, Seconds
Time Range 0.05 s → 60 h
Contact Configuration NO/NC
Number Of Contacts 1
Terminal Type Screw
Mounting Type DIN rail
Switch Configuration SPDT
Power Supply External
Time Delay 70 (Recovery) ms
Supply Voltage 24 → 240 V ac/dc
Minimum Voltage 24 V ac/dc
Maximum Voltage 240 V dc, 400 V ac
Length 58mm
Maximum Operating Temperature +60°C
Minimum Operating Temperature -20°C
Width 45mm
Depth 65.3mm
Current Maximum 3 A |
